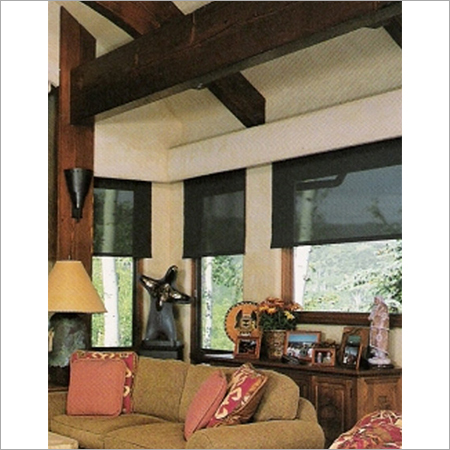

Solar Screens

Solar Screens
Solar Screens
Product Code : 09
Product Description
The Systems India Pvt. Ltd. Company is located in New Delhi. India, engaged as a Supplier and Manufacturer of Solar Screens. The offered range is manufactured by using the best screen Fabrics, under the guidance of skilled professionals. All the products can be operated manually or automated using high quality motors and controls. Our products can be used in both commercial office buildings and homes. We also customized our products as per the requirement of our valued customers. Furthermore, you can avail the offer of Solar Screens at very reasonable prices.

Features :
  • Available in Manual chain operation or automated using France motors and controls .
  • Controls could be a Switch , Remote and intelligent sensors to control the movement of the blinds to control temperature and light .
  • Can be installed internally or externally on Glass windows .
  • Efficiency of the Solar screens is much higher when installed externally .
  • Large range of Fabrics which are warranted for a period of 5 Years for manufacturing defects .
Other details :
Cut Heat by upto 96% , UV by upto 100% and Glare by upto 95%.

Specifications :
  • BRACKET SET : The Bracket Set is a molded plastic set of two brackets for either side of the Rolle tube in white colour . The bracket on the operation side is fixed and the opposite side is removable which is fixed during installation. The Bracket set can be used for a wall mountable or ceiling mountable installation.
  • CHAIN & CHAIN LOCK : The Chain is a white plastic beaded chain over special quality thread which moves in the chain clutch to roll the fabric over the roller tube . The Chain lock is a plastic lock to fix the length of the chain . It is open thus making if flexible to alter the length of the chain is so desired .
  • CHAIN CLUTCH : The chain clutch is a molded plastic component consisting of plastic gears and mechanism for operating the blind using a beaded plastic and thread chain . The Chain clutch is designed in a manner that the fabric can be stopped at any position along its height .
  • END CAPS : The end caps are molded plastic caps for closing the ends of the load bar and adding aesthetics to the blind .
  • END PIN : The End Pin is also a molded plastic component in white color which acts as the opposite dead end of the roller tube . It is fixed to the roller tube and the move in bracket on the opposite side .
  • LOAD BAR : The Load bar is another special aluminum extrusion of alloy LM 6 designed to hold fabric by inserting into a groove and providing a bottom weight to assist movement of the blind and keeping the fabric stretched . The Load bar extrusion is 21 mm outer diameter , 1.2 mm thickness and 8.6 mm groove . Internal ribs have been designed inside the extrusion to provide strength to the load bar and keep it straight for lengths up to 3 mtrs .
  • ROLLER TUBE : The roller tube is an Aluminum extrusion of special alloy LM 6 , 40 mm outer diameter diameter and 1.2 mm thickness with a 8.5 mm groove designed to insert the fabric sealed to an insert for manually operated blinds . Motorized blinds use a 40 mm or 50 mm steel roller tube of 1.6 mm thickness.
